Features

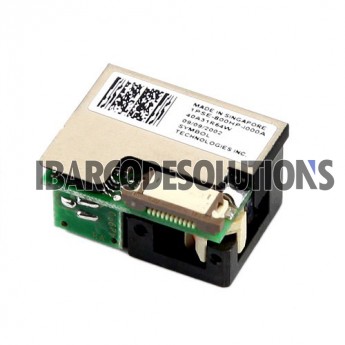

Symbol MC3000 laser scan engine (SE800) uses a relatively advanced red laser diode with high reflectivity. It is used on portable handheld data terminals with a small TE (Track Error), Symbol MC3000 laser scan engine (SE800) is composed of optical elements such as an objective lens, a collimating lens, a polarizing beam splitting prism, a beam splitting prism, a reflector, and a light emitting diode, etc.
Symbol MC3000 laser scan engine (SE800) supplied by IBARCODESOLUTIONS has excellent sealing and storage conditions. It is strictly tested at the time of shipment to ensure the function of the product and ensure the cleanness in the optical channel and normally recognized and read of laser beam.
Installation guide
When installing the Symbol MC3000 laser scan engine (SE800), use a finger cot to avoid direct contact with the laser scan engine by hand, which may cause contamination of the optical components. Do not contact wipe the laser scan engine during installation. Do not use liquid detergent to clean it. Pay attention to the cleanliness of the installation environment.
Precautions
Symbol MC3000 laser scan engine (SE800) must be sealed when it is stored, because once the optical channel is contaminated by oil, dust, and moisture, the laser scan engine emits a laser beam that cannot be read when capture data.
Symbol MC3000 laser scan engine must be sealed when it is stored. When taking out the product, first take the finger cover, and put the product in a hard box, fix it, do not let it be squeezed and impacted, store it in a cool dry place. .
Tips
Symbol MC3000 laser scan engine model is SE800 and cannot be used directly on SE950 machines. But with a few minor modifications, the SE800 laser scan engine can be applied to the SE950 machine. (Please make sure that the function of the laser scan engine is normal before changing the function).
Because screw hole for mounting the laser scan engine of SE800 machine and SE950 machine are just staggered, respectively, on different diagonal lines, only need to drill two holes in the position corresponding to the laser scan engine screw hole on the other diagonal line of the SE950 machine. The same size hole allows the SE800 laser scan engine to be installed.
-
