The main parameters
Product Type: Imager Scan Engine
Regulations
Electrical safety: UL 60950-1
Environmental Regulation: RoHS Directive 2002/95/EEC
Laser safety: IEC 60825-1
Use environment
Working current: camera/aiming/motor working current: 175 mA
Lighting current: 47mA (typically 3.3V)
Light resistance: all dark to 9,000 feet, candlelight (96,900 lux)
Working temperature: -20℃ to 55℃
Power supply voltage: camera/aiming input voltage: DC 3.15V ± 10%, lighting input voltage: DC 3.15V ± 10%
Operating humidity: 95% (relative humidity, no condensation, 60℃)
Storage humidity: 85% (relative humidity, no condensation, 70℃)
Storage temperature: -40℃ to 70℃
Performance parameter
Focusing environment (VLD): 650±5nm
Scan depth: UPC-A-80% MRD: 5.7cm to 22.2cm
Swing back and forth: ±60° from normal position
Sight: Level: 32.2°; Vertical: 24.5°
Rotation (tilt): 360°
Illumination environment (LED): 635±20nm
Swing left and right (deviation): ±50° from the normal position
Image resolution (pixels): 640 (H) x 480 (V) pixels (gray scale)
Anti-decoding: decoding only
Scan mode: omnidirectional
Decoding ability: 1D/PDF417
Supported interfaces: RS-232 (TTL): SSI, USB: HID keyboard, USB: IBM, USB: Com port, USB: SNAPI
Technology: Image Reader
Scanning angle: 30°x 22.5°
Physical parameter
Pocket type: Yes
Size: 11.8mm x 21.5mm x 16.3mm
Weight: 8.3g
Other features

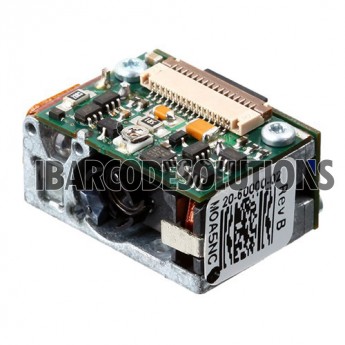

The Symbol SE4400 Imager Scan Engine is designed to ensure optimal integration into OEM equipment. It is the best choice for a growing range of applications including manufacturing, healthcare, service kiosks, security/identification, tape storage, small commodity identification and parcels. Its accompanying decoder PL4407 is used to control camera functions and omnidirectional decoding of all 1D and 2D code systems. The PL4407 can be supplied as a ball grid array (BGA) component or integrated on a printed circuit board. The SE4400 two-dimensional laser scan engine is also available as a fixed-mount scanner (MS4400), which makes integration easier and lower engineering costs.
-
