The main parameters
Regulations
Electrical safety: UL 60950-1
Laser safety: IEC 60825-1
Use environment
Working current: input current: 140mA (typical); standby current: 60mA (maximum)
Light resistance: artificial lighting: 450 feet, candlelight (4,844 lux); daylight: 8,000 inches (86,112 lux)
Voltage:
SE-1224HP-I000AR: DC 5V±10%
SE-1224HP-I001AR: DC 3.3V±10%
Humidity: 5-95% (no condensation)
Storage temperature: -40 ℃ -70 ℃
Working temperature: -30℃-60℃chassis temperature
Performance parameter
Anti-decoding: decoding only
Scan mode: single line
Decoding ability: 1D
Programmable parameters: laser turn-on time, aiming time, power mode, trigger bidirectional redundancy, Symbolology type/length, data formatting, serial parameters, buzzer tones, scanning angle
Light source: laser 650nm
Supported interfaces: 12-pin ZIF connector RS-232 (TTL): SSI
Technology: Laser Scanner
Scanning angle: 42° (typical); 30° (narrow angle)
Scan rate: 35±5 scans/sec (two-way)
Physical parameter
Full size: yes
Dimensions: 19.1 x 38.3 x 25.4mm (rated value)
Weight: 37g
Other features

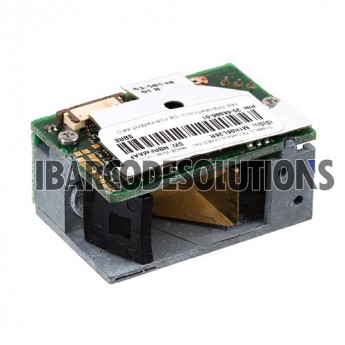

The Symbol SE1224-HP integrates high-performance 1D scanning into your product. Fuzzy logic technology ensures excellent scanning of 1D barcodes with printing rough or low contrast. Ideal for any environment, this laser scanning engine supports many demanding applications such as warehouse, cargo shipping and receiving, clinical diagnostics, retail and manufacturing. The SE1224HP scan engine is also available as a fixed scanner (MS12xx) for easier integration and lower engineering costs.
-
