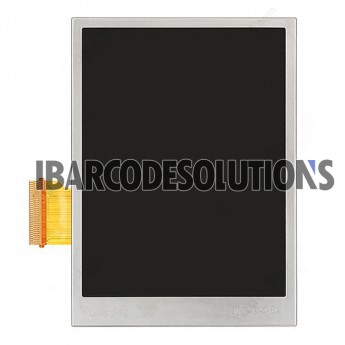

Replacement For OEM Symbol MC9100, MC9190, MC9500, MC9590, MC9596, MC9598 LCD Screen without PCB Board (3110T-0443A) (3550B-0440A) (LH370V01) ( Used,Tested )
-
Specifications
Size：3.7 inches
Material：TFT
Resolution：240 x 320
Screen color：Color
Technical principle：LCD
Interface mode：Plug-in
Features
Symbol MC9100 LCD screen is based on a single LCD and has a small PCB board on the back panel. The Symbol MC9100 handheld mobile computer is widely used in a variety of harsh environments and requires high liquid crystal performance. This LCD design is very good to ensure the practicality of the LCD, in addition to the display area and cable, the LCD is surrounded by iron protection. The liquid crystal of this design is relatively easy to enter dust after installing touch screen, so we have high requirements for detecting the Adhesion and flatness of such a liquid crystal iron frame.
Test content of IBARCODESOLUTIONS for the Symbol MC9100 LCD screen includes: whether the cable is good, the iron frame is deformed, the backlight is normal, and the display shows whether there are any bad points or bright spots. The products provided by our company have good machine adhesion and can effectively prevent dust from entering after assembling the touch screen.
Installation guide
When installing the Symbol MC9100 LCD screen, clean the connecting finger, the PCB should be anti-static, remove the host battery during the installation or replacement process, install with the glove and try not to touch the PCB as much as possible, first connect the LCD cable to the PCB, and then connect the PCB to the motherboard cable, it can be powered on after ensuring connection. Pay attention to the protection of the cable during the installation process, and do not break the cable.
Precautions
Symbol MC9100 LCD screen must be affixed with a protective film on the display surface before storage, and then packed in a sealed bag to avoid oxidation of the connecting finger caused by the exposed cable in the air, and then storing in a rigid storage box. Pay attention to moisture, pressure, and static electricity.
-
