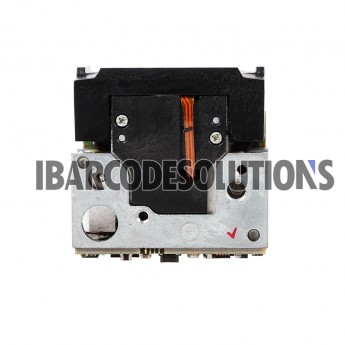

OEM Intermec CN3, CK3, CK61 Long Range Laser Scan Engine (EX25, 2D)
Electrical Characteristics
Voltage : 3.3V+/- 5%
Current : Max Current: 450 mA (imager +laser), 230mA (motor)
Standby Current : <32mA
Hybernate Current: <3mA
EnvironmentOperating
Temperature : -20° to 60° C (-4° to 140° F)
Storage Temperature : -40° to 70° C (-40° to 158° F)
Humidity : 5% to 95% (non-condensing)
Shock : 2000G, 0.7ms, half sinus, 3 axes
Ambient Light : Works in any lighting conditions, from 0 to 100 000 lux
Vibration : 8G r.m.s., from 10Hz to 500Hz, 2 hours/axis, 3 axes
Interfaces
Connector: 14 pin ZIF, pitch 0.5 mm (0.2 in)
Decoded Mode : High speed RS232 TTL (up to 460kbauds) with Intermec Scanner Control Protocol (ISCP)
Physical Characteristics
Width : 34 mm (1.34 in)
Depth : 33.7 mm (1.33 in)
Height : 21 mm (0.83 in)
Weight : 32 g (1.13 oz.)
Scanning Performance
Scan Rate : up to 30 frames/s auto adaptive
Min X Dimension :
1D codes 0.075 mm (3 mils)
2D codes 0.167mm (6.6 mils)
Print Contrast : down to 40%
Scan Angle : 14° (Horizontal), 8.7° (Vertical)
Optical Resolution : 1280 (H) x 800 (V) pixels, 256 gray levels
Light Source : Auto-adaptive
illumination: 617 nm highly visible LEDs
Aimer: 650nm class 2 Laser
-
